ISS: Expedition 34
|Given names:||Kevin Anthony||Oleg Viktorovich||Yevgeni Igorevich||Roman Yuriyevich||Chris Austin||Thomas Henry "Tom"|
|Position:||ISS-CDR||Flight Engineer||Flight Engineer||Flight Engineer||Flight Engineer||Flight Engineer|
|Spacecraft (Launch):||Soyuz TMA-06M||Soyuz TMA-06M||Soyuz TMA-06M||Soyuz TMA-07M||Soyuz TMA-07M||Soyuz TMA-07M|
|Launchtime:||10:51:10.934 UTC||10:51:10.934 UTC||10:51:10.934 UTC||12:12:35.340 UTC||12:12:35.340 UTC||12:12:35.340 UTC|
|Spacecraft (Landing):||Soyuz TMA-06M||Soyuz TMA-06M||Soyuz TMA-06M||Soyuz TMA-07M||Soyuz TMA-07M||Soyuz TMA-07M|
|Landingtime:||03:06:13.2 UTC||03:06:13.2 UTC||03:06:13.2 UTC||02:30:47.6 UTC||02:30:47.6 UTC||02:30:47.6 UTC|
|Mission duration:||143d 16h 15m 02s||143d 16h 15m 02s||143d 16h 15m 02s||145d 14h 18m 12s||145d 14h 18m 12s||145d 14h 18m 12s|
|Given names:||Pavel Vladimirovich||Aleksandr Aleksandrovich||Christopher John "Chris"||Fyodor Nikolayevich||Luca Salvo||Karen Lujean|
|Position:||ISS-CDR||Flight Engineer||Flight Engineer||Flight Engineer||Flight Engineer||Flight Engineer|
Launch from the Baikonur Cosmodrome (Roman Romanenko, Chris Hadfield and Thomas Marshburn with Soyuz TMA-07M). Oleg Novitsky, Yevgeni Tarelkin and Kevin Ford were onboard since October 25, 2012 (arrival with Soyuz TMA-06M).
ISS Expedition 34 began with the undocking of spacecraft Soyuz TMA-05M on November 18, 2012 at 22:26 UTC. The former Expedition 33 (Yuri Malenchenko, Sunita Williams and Akihiko Hoshide) returned safely to Earth.

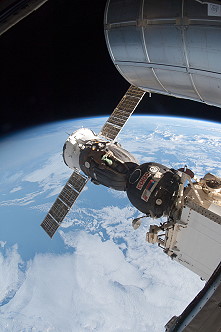

With the arrival of Soyuz TMA-07M on December 21, 2012 the Expedition 34 became a six-person-crew. Soyuz TMA-07M carried Roman Romanenko, Chris Hadfield and Thomas Marshburn to the space station.
Progress M-18M was launched on time at 14:41 UTC on February 11, 2013 from the Baikonur Cosmodrome in Kazakhstan. Progress M-18M docked with the Pirs Docking Compartment at 20:35 UTC less than six hours after the launch. The successful docking climaxed the third successful Same-Day-Rendezvous in the International Space Station history.
Progress M-18M delivered about 764 pounds (346 kilograms) of propellant, 110 pounds (50 kg) of oxygen and air, 926 pounds (420 kg) of water and about 3,000 pounds (1,360 kg) of spare parts, science gear and other supplies to the Space Station.
Progress M-18M undocked from the ISS at 20:43 UTC on July 25, 2013. The reentry procedure was scheduled to begin around 23:53 UTC.

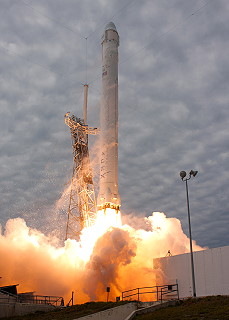

The Dragon CRS-2 spacecraft lifted off from Cape Canaveral Air Force Station in Florida March 01, 2013 aboard a SpaceX Falcon 9 rocket. Shortly after spacecraft separation from the rocket's second stage, the Dragon lost three of its four thruster pods. Solar array deployment was delayed while SpaceX engineers worked to purge blocked valves and get the pods back online. Ninety minutes after launch, Dragon's arrays were deployed. Later, all four thruster pods were online and attitude control was regained.
Following a series of tests to ensure the spacecraft could safely approach the space station, Dragon was approved to approach the orbiting laboratory on March 03, 2013 morning, one day after its originally planned arrival, which is not expected to impact any of the scientific investigations being delivered.

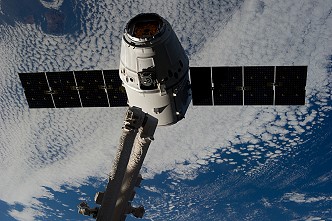

ISS Expedition 34 crew members Kevin Ford and Thomas Marshburn used the station's robotic arm to successfully capture Dragon at 10:31 UTC on March 03, 2013. The capture came one day, 19 hours and 22 minutes after the mission's launch. The station was 253 miles (407 km) above northern Ukraine. Following its capture, the spacecraft was installed onto the Earth-facing port of the Harmony module.
When launched the CRS-2 Dragon was filled with about 1,493 lb (677 kg) of cargo, 1,268 lb (575 kg) without packaging. Included was 178 lb (81 kg) of crew supplies, 766 lb (347 kg) of scientific experiments and experiment hardware, 298 lb (135 kg) of hardware for the station and other miscellaneous items, among them a CD copy of the song "Up in the Air" by rock band Thirty Seconds to Mars, was premiered on board the International Space Station on March 18, 2013, during a NASA TV broadcast from the station. The two Heat Rejection Subsystem Grapple Fixtures (HRSGFs) had a combined weight of 487 lb (221 kg) and were transported to the ISS inside the unpressurized Dragon trunk as external cargo.
On March 26, 2013 Dragon was unberthed from the Harmony node by the Canadarm2 at 08:10 UTC by commands from ground controllers. Its release from Canadarm2 occurred at 10:56 UTC Then the Expedition 35 crew commanded the spacecraft to slowly depart from the International Space Station. The SpaceX Dragon fired its engines for the last time Tuesday at 15:42 UTC sending it through the Earth's atmosphere for a splashdown in the Pacific Ocean at 16:34 UTC. A team of SpaceX engineers, technicians and divers recovered the vehicle and its scientific cargo off the coast of Baja, California, for the journey back to shore which took about 30 hours.
The Dragon returned 3,020 lb (1,370 kg) of cargo, 2,668 lb (1,210 kg) without packaging. Included is 210 lb (95 kg) of crew supplies, 1,455 lb (660 kg) of scientific experiments and experiment hardware, 884 lb (401 kg) of space station hardware, 84 lb (38 kg) of spacesuit equipment and other miscellaneous items.
Expedition 32 and Expedition 33 / 34 continue to expand the scope of research aboard the International Space Station, with new research facilities being delivered and a new micro-satellite deployment system being tested. The station has returned to a predominantly six-person crew, allowing more crew time available for science activities.
During this timeframe, more than 240 experiments will be performed on the station, involving more than 80 new experiments, technology demonstrations and facilities. More than 400 investigators from around the world are involved in the various types of research. The investigations cover human research, biological and physical sciences, technology development, Earth observation, and education.
Several new Japan Aerospace Exploration Agency (JAXA) investigations are joining the suite of research. JAXA's Japanese Experiment Module (JEM) Small Satellite Orbital Deployer (J-SSOD) will demonstrate a new capability to launch small satellites from the JEM Remote Manipulator System - also known as the Kibo Laboratory robotic arm. This technology development demonstration is intended to prove air, water, and surface monitoring capabilities.
The Aquatic Habitat (AQH) is planned for delivery on JAXA's H-II Transfer Vehicle-3 (HTV-3) also known as Konotouri 3, scheduled to launch July 21 and the third HTV to visit the station. This freshwater habitat is a new facility for the space station, which will enable investigations using fish, to learn more about bone and muscle atrophy (medical issues for the aging population) and radiation effects. The first planned residents of the habitat are Medaka fish, which are transparent - allowing for easy observation of their skeletal systems. The fish will be delivered to the station on a later flight. This facility will be housed in the Kibo laboratory.
Testing the performance of a miniaturized flow cytometer, Microflow1, is a new investigation provided by the Canadian Space Agency (CSA). Flow cytometers use a laser to analyze individual cells for cell counting and sorting, biomarker (disease signatures) detecting, and protein engineering. This technique is used routinely in diagnosing health issues, and is useful in basic research and many clinical applications. An operational medical tool of this kind on the station would allow for many types of testing and analysis, including blood cell counts (complete blood count or CBCs) to be done in orbit. This type of blood testing is quite common on Earth and is often one of the first activities performed by physicians to determine illness specifics. A flow cytometer would make this standard test available aboard the station.
Another first time investigation is NASA's Advanced Colloids Experiment-1 (ACE-1), using a light microscope to help provide a better understanding of crystallization and phase separation of small colloidal particles, and production quality control. Results from this research could considerably impact the shelf-life of many products used on Earth and for long-duration spaceflight missions.
As with prior expeditions, many investigations are designed to gather information about the effects of long-duration spaceflight on the human body, which will help us understand complicated processes such as immune systems with plans for future exploration missions.
The European Space Agency's human research involving Circadian Rhythms examines the role of synchronized circadian rhythms (the human body's 24-hour light-dark cycle) and possible maintenance during long-duration spaceflight and addresses the impacts to crew members' health and wellbeing. Understanding how light/dark cycles and sleep pattern changes affect circadian rhythms enhances adaptation, performance and healthcare of future crew members. Results from this research could also be a benefit for shift workers on Earth.
The International Space Station Test Bed for Analog Research I-STAR Earth Departure Communications Delay Study (COMM Delay) will assist engineers and scientists in human research regarding communication delays likely to be experienced during a mission to Mars, an asteroid, or other possible destinations. Researchers want to understand any significant impacts in crew behavior and performance, including where in the communications delay is the critical point possibly affecting behavioral and task performance. The first full voice communications delay test is planned during Expedition 36, which starts in summer 2013.
As part of U.S. National Laboratory activities on the station, NanoRacks modules provide autonomous, self-contained experiments that can be flown quickly and inexpensively by students, companies and other U.S. government agencies. NanoRacks facilities are being expanded, with the addition of a small centrifuge and a plate reader to be used for plant and animal tissue investigations, and allowing for onsite microbiological analysis, expanding life science and biological research on the station.
The NanoRacks plate reader is a laboratory instrument designed to detect biological, chemical or physical events of samples in microtiter plates (a flat plate with lots of "wells" used as small test tubes). Microplate readers are widely used in research, drug discovery, bioassay validation (determination of purity concentration or biological activity), quality control and manufacturing processes in the pharmaceutical and biotechnological industry and academic organizations.
Another U.S. Laboratory offering, the National Laboratory Pathfinder - Vaccine - Salmonella (NLPVaccine-Salmonella) investigation continues. Investigators are researching a vaccination for salmonella for the prevention of infection on Earth and in microgravity. Worldwide, salmonella is the most common cause of food poisoning and a major cause of death in children.
Earth science also is on the list of topics that generates much interest, and there are many investigations involving this aspect. ISS SERVIR Environmental Research and Visualization System (ISERV) is an investigation designed to gain experience and expertise in automated data acquisition. ISERV will serve as a pathfinder investigation that will lead to the development of enhanced capabilities that will provide useful images to support disaster (or other significant event) monitoring and assessment, and environmental decision making when needed. ISERV is a joint venture between NASA and the U.S. Agency for International Development (USAID) and will be installed in the Window Observational Research Facility (WORF).
The European Space Agency's Facility for Absorption and Surface Tension (FASTER) will be flown for the first time on the space station. This investigation will research how surfactants will affect the physical chemistry properties and emulsion stability of droplet interfaces. The goal is to generate a model of emulsion dynamics that can then be used in industrial applications where mixtures of two or more liquids that are typically unable to be blended (for instance oil and water) are desired.
In typical NASA and international partner fashion, there are many educational activities and investigations planned to teach and inspire students of all ages. The YouTube Space Lab Global Science contest winners were chosen and announced, with the two winning experiments being flown and performed on the space station before the end of the year. Earth Knowledge Acquired by Middle School Students (EarthKAM) continues to excite and engage middle-school students.
Alpha Magnetic Spectrometer-02 (AMS) and Robonaut-2 investigations are ongoing. The AMS continues to collect a vast amount of data - measuring almost double the amount researchers expected, at a rate of about 1.2 billion particles per month. The testing of Robonaut's capabilities and movement continues as planned.
The short-duration SpaceX demonstration mission returned several Material Science Research Rack (MSRR) sample cartridge assemblies used in metal alloy materials processing. The cartridge assemblies will be analyzed to understand the alloy solidification that occurred in microgravity during the Solidification along a Eutectic path in Ternary Alloys-2 (SETA) and Microstructure Formation in Casting of Technical Alloys under Diffusive and Magnetically Controlled Convective Conditions/ Columnar-to-Equiaxed Transition in Solidification Processing (MICAST/CETSOL) investigations. Used science hardware also was returned for either refurbishment or disposal.
Finally the station command changed from American astronaut Kevin Ford to Canadian astronaut Chris Hadfield. With undocking of Soyuz TMA-06M, carrying Oleg Novitsky, Yevgeni Tarelkin and Kevin Ford on March 15, 2013 at 23:43 UTC the Expedition 34 concluded and the new ISS Expedition 35 began.
During the stay on board of the ISS the crews of Expeditions 33 / 34 carried out the following scientific experiments:
3DA1 Camcorder (Panasonic 3D Camera)
ACE-1 (Advanced Colloids Experiment-1)
AMS-02 (Alpha Magnetic Spectrometer - 02)
Amine Swingbed (Amine Swingbed)
Area PADLES (Area Passive Dosimeter for Life-Science Experiments in Space)
BASS (Burning and Suppression of Solids)
BCAT-3-4-CP (Binary Colloidal Alloy Test - 3 and 4: Critical Point)
BCAT-4-Poly (Binodal Colloidal Aggregation Test - 4: Polydispersion)
BCAT-5-3D-Melt (Binary Colloidal Alloy Test - 5: Three-Dimensional Melt)
BCAT-5-PhaseSep (Binary Colloidal Alloy Test-5: Phase Separation)
BCAT-5-Seeded Growth (Binary Colloidal Alloy Test - 5: Seeded Growth)
BCAT-6-Colloidal_Disks (Binary Colloidal Alloy Test - 6 - Colloidal Disks)
BCAT-6-PS-DNA (Binary Colloidal Alloy Test - 6: Polystyrene - Deoxyribonucleic Acid)
BCAT-6-Phase Separation (Binary Colloidal Alloy Test - 6 - Phase Separation)
BCAT-6-Seeded Growth (Binary Colloidal Alloy Test - 6: Seeded Growth)
BCAT-C1 (Binary Colloidal Alloy Test - C1)
BP Reg (A Simple In-flight Method to Test the Risk of Fainting on Return to Earth After Long-Duration Space Flights)
BRIC-17-1 (Biological Research In Canisters-17-1: Undifferentiated Cell development in Arabidopsis plants in Microgravity)
BRIC-17-2 (Biological Research in Canisters-17-2: Understanding Anoxic Response in Arabidopsis)
Biological Rhythms 48hrs (The effect of long-term microgravity exposure on cardiac autonomic function by analyzing 48-hours electrocardiogram)
Bisphosphonates (Bisphosphonates as a Countermeasure to Space Flight Induced Bone Loss)
CCF (Capillary Channel Flow)
CEO (Crew Earth Observations)
CFE-2 (Capillary Flow Experiment - 2)
CSI-06 (Commercial Generic Bioprocessing Apparatus Science Insert - 06)
CSLM-3 (Coarsening in Solid Liquid Mixtures-3)
Cell Bio Tech Demo (Cell Biology Technology Demonstration)
Circadian Rhythms (Circadian Rhythms)
Communications and Outreach 2-ARISS (Communications and Outreach 2 - ARISS)
Communications and Outreach 2-Podcasts (Communications and Outreach 2 - Podcasts)
DECLIC DSI-R (DEvice for the study of Critical LIquids and Crystallization - Directional Solidification Insert-Reflight)
DECLIC HTI-R (DEvice for the study of Critical LIquids and Crystallization - High Temperature Insert-Reflight)
DOSIS-3D (Dose Distribution Inside the International Space Station - 3D)
DTN (Disruption Tolerant Networking for Space Operations)
Dynamic Surf (Experimental Assessment of Dynamic Surface Deformation Effects in Transition to Oscillatory Thermo capillary Flow in Liquid Bridge of High Prandtl Number Fluid)
ELITE-S2 (ELaboratore Immagini TElevisive - Space 2)
EPO-Demos (Education Payload Operation - Demonstrations)
EarthKAM (Earth Knowledge Acquired by Middle School Students)
Energy (Astronaut's Energy Requirements for Long-Term Space Flight)
FASTER (Facility for Absorption and Surface Tension)
FLEX-2 (Flame Extinguishment Experiment - 2)
Functional Task Test (Physiological Factors Contributing to Postflight Changes in Functional Performance)
HREP-HICO (HICO and RAIDS Experiment Payload - Hyperspectral Imager for the Coastal Ocean)
HREP-RAIDS (HICO and RAIDS Experiment Payload - Remote Atmospheric and Ionospheric Detection System (RAIDS))
Hair (Biomedical Analyses of Human Hair Exposed to a Long-term Space Flight)
HiMassSEE (Spacecraft Single Event Environments at High Shielding Mass)
Hicari (Growth of Homogeneous SiGe Crystals in Microgravity by the TLZ Method)
ISERV (ISS SERVIR Environmental Research and Visualization System)
ISSAC (International Space Station Agricultural Camera)
ISS Ham Radio (International Space Station Ham Radio)
Ice Crystal 2 (Crystal growth mechanisms associated with the macromolecules adsorbed at a growing interface - Microgravity effect for self-oscillatory growth - 2)
InSPACE-3 (Investigating the Structure of Paramagnetic Aggregates from Colloidal Emulsions - 3)
Integrated Cardiovascular (Cardiac Atrophy and Diastolic Dysfunction During and After Long Duration Spaceflight: Functional Consequences for Orthostatic Intolerance, Exercise Capability and Risk for Cardiac Arrhythmias)
Intervertebral Disc Damage (Risk of Intervertebral Disc Damage after Prolonged Space Flight)
J-SSOD (JEM Small Satellite Orbital Deployer)
JAXA EPO 10 (JAXA Education Payload Observation 10)
JAXA PCG (Japan Aerospace Exploration Agency Protein Crystal Growth)
Journals (Behavioral Issues Associated with isolation and Confinement: Review and Analysis of Astronaut Journals)
MAXI (Monitor of All-sky X-ray Image)
MCE (Multi-mission Consolidated Equipment)
MISSE-8 (Materials International Space Station Experiment - 8)
MVIS Controller-1 (MVIS Controller 1)
Manual Control (Assessment of Operator Proficiency Following Long-Duration Space Flight)
Marangoni-Exp (Chaos, Turbulence and its Transition Process in Marangoni Convection-Exp)
Marangoni-UVP (Spatio-temporal Flow Structure in Marangoni Convection)
Micro-5 (Investigation of host-pathogen interactions, conserved cellular responses, and countermeasure efficacy during spaceflight using the human surrogate model Caenorhabditis elegans)
Micro-6 (Genotypic and Phenotypic Responses of Candida albicans to Spaceflight)
Microflow1 (Microflow 1 technology demonstration)
NanoRacks-NCESSE-Antares (NanoRacks-National Center for Earth and Space Science Education-Antares)
Nano Step (In-situ Observation of Growth Mechanisms of Protein Crystals and Their Perfection Under Microgravity)
Neurospat (Effect of Gravitational Context on EEG Dynamics: A Study of Spatial Cognition, Novelty Processing and Sensorimotor Integration)
Nutrition (Nutritional Status Assessment)
ODK2 (Evaluation of Onboard Diagnostic Kit 2)
Photosynth (Photosynth Three-Dimensional Modeling of ISS Interior and Exterior)
Pro K (Dietary Intake Can Predict and Protect Against Changes in Bone Metabolism during Spaceflight and Recovery)
RRM (Robotic Refueling Mission)
RaDI-N-2 (RaDI-N 2 Neutron Field Study)
Radiation Environment Monitor (Radiation Environment Monitor)
Reaction Self Test (Psychomotor Vigilance Self Test on the International Space Station)
Repository (National Aeronautics and Space Administration Biological Specimen Repository)
Resist Tubule (Mechanisms of Gravity Resistance in Plants From Signal Transformation and Transduction to Response)
Reversible Figures (Perspective Reversible Figures in Microgravity)
SCAN Testbed (Space Communications and Navigation Testbed)
SEDA-AP (Space Environment Data Acquisition Equipment - Attached Payload)
SETA-2 (Solidification along a Eutectic path in Ternary Alloys-2)
SMILES (Superconducting Submillimeter-Wave Limb-Emission Sounder)
SNFM (Serial Network Flow Monitor)
SPHERES-VERTIGO (Synchronized Position, Hold, Engage, Reorient, Experimental Satellites - VERTIGO)
SPHERES-Zero-Robotics (Synchronized Position Hold, Engage, Reorient, Experimental Satellites-Zero-Robotics )
STP-H3-Canary (Space Test Program - Houston 3 - Canary)
STP-H3-DISC (Space Test Program - Houston 3 - Digital Imaging Star Camera)
STP-H3-MHTEX (Space Test Program - Houston 3 - Massive Heat Transfer Experiment)
STP-H3-VADER (Space Test Program - Houston 3 - Variable emissivity radiator Aerogel insulation blanket Dual zone thermal control Experiment suite for Responsive space)
Seedling Growth-1 (Seedling Growth-1)
Solar-SOLACES (Sun Monitoring on the External Payload Facility of Columbus - SOLar Auto-Calibrating EUV/UV Spectrophotometers)
SpaceDRUMS (Space Dynamically Responding Ultrasonic Matrix System)
Space Headaches (Space Headaches)
Spinal Ultrasound (Sonographic Astronaut Vertebral Examination)
Sprint (Integrated Resistance and Aerobic Training Study)
Stem Cells (Study on the Effect of Space Environment to Embryonic Stem Cells to Their Development)
TechEdSat (Technology Education Satellite)
Treadmill Kinematics (Biomechanical Analysis of Treadmill Exercise on the International Space Station)
TriTel (3D Silicon Detector Telescope)
UBNT (Ultrasonic Background Noise Test)
V-C REFLEX (Plastic alteration of vestibulo-cardiovascular reflex and its countermeasure)
VIABLE ISS (eValuatIon And monitoring of microBiofiLms insidE International Space Station)
VIIP (Vision Impairment and Intracranial Pressure)
VO2max (Evaluation of Maximal Oxygen Uptake and Submaximal Estimates of VO2max Before, During, and After Long Duration International Space Station Missions)
Vascular (Cardiovascular Health Consequences of Long-Duration Space Flight)
Vessel ID System (Vessel ID System)
Assembly animation (external link)
