Human Spaceflights

International Flight No. 288

Soyuz TMA-07M

Parus

Russia

Russia
Patch Soyuz TMA-07M Patch Soyuz TMA-07M

hi res version (471 KB)

Launch, orbit and landing data

Launch date:  19.12.2012
Launch time:  12:12:35.340 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  411 - 417 km
Inclination:  51.65°
Docking ISS:  21.12.2012, 14:08:44 UTC
Undocking ISS:  14.05.2013, 23:07:54 UTC
Landing date:  14.05.2013
Landing time:  02:30:47.6 UTC
Landing site:  47°24'27.5" N, 69°36'35.6" E

walkout photo

Crew Soyuz TMA-07M

hi res version (727 KB)

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

alternative crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Romanenko  Roman Yuriyevich  Commander 2 145d 14h 18m 12s  2261
2  Hadfield  Chris Austin  Flight Engineer 3 145d 14h 18m 12s  2261
3  Marshburn  Thomas Henry "Tom"  Flight Engineer 2 145d 14h 18m 12s  2261

Crew seating arrangement

Launch
1  Romanenko
2  Hadfield
3  Marshburn
Soyuz TMA spacecraft
Landing
1  Romanenko
2  Hadfield
3  Marshburn

Backup Crew

No.   Surname Given names Position
1  Yurchikhin  Fyodor Nikolayevich  Commander
2  Parmitano  Luca Salvo  Flight Engineer
3  Nyberg  Karen Lujean  Flight Engineer
Crew Soyuz TMA-07M backup
Patch Soyuz TMA-07M backup

hi res version (751 KB)

alternative crew photo

alternative crew photo

hi res version (472 KB)

Hardware

Launch vehicle:  Soyuz-FG (No. 4M135S L15000-040)
Spacecraft:  Soyuz TMA-07M (TMA-M No. 704A)

Flight

Launch from the Baikonur Cosmodrome. Landing 149 km southeast of Dzheskasgan. ISS Expedition 34 / 35.

Following a two-day solo flight Soyuz TMA-07M docked to ISS on December 21, 2012. Roman Romanenko, Chris Hadfield and Thomas Marshburn became the ISS Expedition 34 (together with ISS Expedition 33 crew members Oleg Novitsky, Yevgeni Tarelkin and Kevin Ford).

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
The deorbit burn lasted 285 seconds. Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet (121.9 kilometers) above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet (230 meters) per second. Before it touched down, its speed slowed to only 5 feet (1.5 meter) per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet (230 meters) per second to 262 feet (80 meters) per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet (1,000 square meters). Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet (7.3 meters) per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

Graphics / Photos

Soyuz TMA spacecraft Soyuz TMA landing module
crew in training Soyuz TMA-07M integration

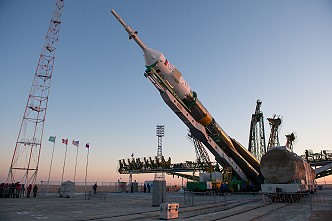

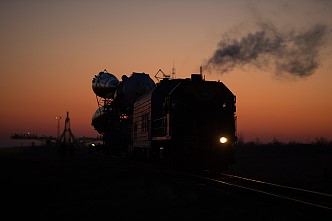

Soyuz TMA-07M rollout Soyuz TMA-07M erection

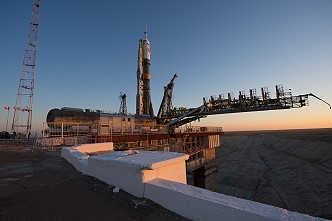

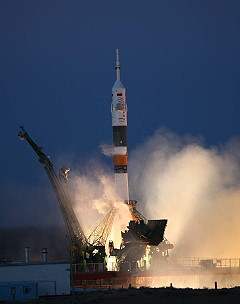

Soyuz TMA-07M on the launch pad Soyuz TMA-07M launch

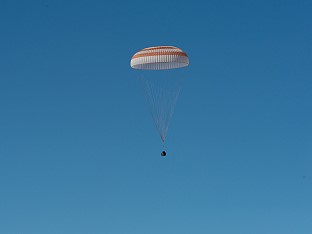

Soyuz TMA-07M launch Soyuz TMA-07M landing
Soyuz TMA-07M recovery

©
