Human Spaceflights

International Flight No. 247

Soyuz TMA-9

Vostok

Russia

hi res version (397 KB)

hi res version (407 KB)

hi res version (326 KB)

Launch, orbit and landing data

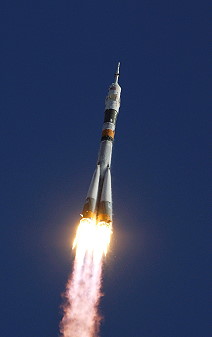

Launch date:  18.09.2006
Launch time:  04:08 UTC
Launch site:  Baikonur

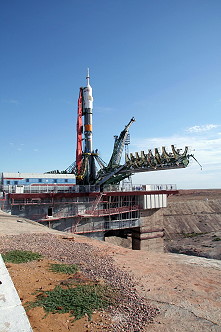

Launch pad:  1
Altitude:  350 km
Inclination:  51,6 °
Docking ISS:  20.09.2006, 05:21 UTC
Undocking ISS:  21.04.2007, 09:11 UTC
Landing date:  21.04.2007
Landing time:  12:31 UTC
Landing site:  48° 26 '00" N, 69° 13' 35" E

walkout photo

hi res version (715 KB)

original crew photo

alternate crew photo

alternate crew photo

alternate crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Tyurin  Mikhail Vladislavovich  Commander 2 215d 08h 22m  3401
2  Lopez-Alegria  Michael Eladio "LA"  Flight Engineer 4 215d 08h 22m  3401
3  Ansari  Anousheh  Spaceflight Participant 1 10d 21h 05m  171

Crew seating arrangement

Launch
1  Tyurin
2  Lopez-Alegria
3  Ansari
Landing
1  Tyurin
2  Lopez-Alegria
3  Simonyi

Animations: Soyuz

(requires Macromedia Flash Player)
with friendly permission of www.marscenter.it

Double Crew

No.   Surname Given names Position
1  Malenchenko  Yuri Ivanovich  Commander
2  Whitson  Peggy Annette  Flight Engineer

alternate crew photo

original crew photo

Flight

Launch from the Baikonur Cosmodrome; landing 135 km northeast of Dzheskasgan.

The mission carried out the ISS Expedition 14. Originally Daisuke Enomoto was assigned as fourth space tourist, but he was medically grounded on August 21, 2006. He was replaced by his double Anousheh Ansari.

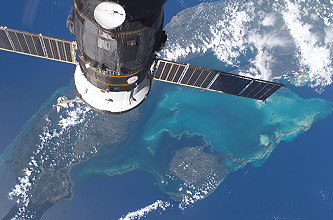

Following a two day solo flight Soyuz TMA-9 docked with the ISS on September 20, 2006. The crew replaced the Expedition 13 crew.

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet per second. Before it touched down, its speed slowed to only 5 feet per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.

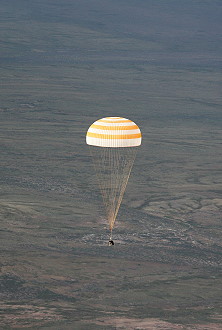

Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet per second to 262 feet per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet. Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

Note

Anousheh Ansari landed on September 29, 2006 at 01:13 UTC with Soyuz TMA-8 spacecraft.
