Human Spaceflights

International Flight No. 229

Soyuz TM-34

Soyuz TM-33
Uran

Russia

Patch Soyuz TM-34

hi res version (347 KB)



Launch, orbit and landing data

Launch date:  25.04.2002
Launch time:  06:26 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  383 - 402 km
Inclination:  51,64°
Docking ISS:  27.04.2002, 07:55:50 UTC
Undocking ISS:  09.11.2002, 20:44:05 UTC
Landing date:  05.05.2002
Landing time:  03:51 UTC
Landing site:  50° 59' N, 67° 35' E

walkout photo

hi res version (851 KB)

alternate crew photo

alternate crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Gidzenko  Yuri Pavlovich  Commander 3 9d 21h 25m  156
2  Vittori  Roberto  Flight Engineer 1 9d 21h 25m  156
3  Shuttleworth  Mark Richard "Buranov"  Spaceflight Participant 1 9d 21h 25m  156

Crew seating arrangement

Launch
1  Gidzenko
2  Vittori
3  Shuttleworth
Landing
1  Zalyotin
2  De Winne
3  Lonchakov

Animations: Soyuz

(requires Macromedia Flash Player)
with friendly permission of www.marscenter.it

Double Crew

No.   Surname Given names Position
1  Padalka  Gennadi Ivanovich  Commander
2  Kononenko  Oleg Dmitriyevich  Flight Engineer

hi res version (776 KB)

Flight

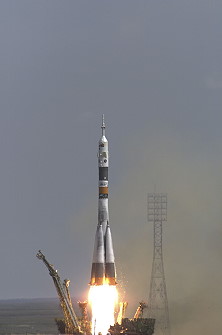

Launch from the Baikonur Cosmodrome; landing 81 km northnortheast of Arkalyk / Kazakhstan.

Soyuz TM-34 carried the third taxi crew to the ISS. Following a two day solo flight Soyuz TM-34 docked to the ISS on April 27, 2002 and common work with Expedition 4 was performed. The ISS' escape craft (Soyuz TM-33) was replaced; Soyuz TM-34 served as a new lifeboat.

Mark Shuttleworth from South Africa became the second space tourist. He was in better condition than Dennis Tito before and carried out a small research program (studying ocean life and biological experiments to combat AIDS and other diseases).

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet per second. Before it touched down, its speed slowed to only 5 feet per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet per second to 262 feet per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet. Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

Photos


©
