Human Spaceflights

International Flight No. 39

Soyuz 10

Granit

USSR

hi res version (228 KB)

Launch, orbit and landing data

Launch date:  22.04.1971
Launch time:  23:54 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  209,6 - 248,4 km
Inclination:  51,60°
Landing date:  24.04.1971
Landing time:  23:40 UTC
Landing site:  120 km NW of Karaganda

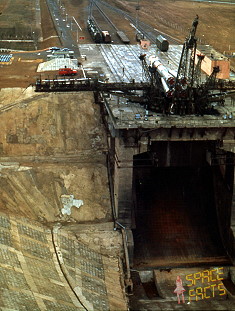

walkout photo

hi res version (1,04 MB)

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

Crew

No.   Surname Given names Position Flight No. Duration Orbits
1  Shatalov  Vladimir Aleksandrovich  Commander 3 1d 23h 45m  32
2  Yeliseyev  Aleksei Stanislavovich  Flight Engineer 3 1d 23h 45m  32
3  Rukavishnikov  Nikolai Nikolayevich  Test Engineer 1 1d 23h 45m  32

Crew seating arrangement

Launch
1  Shatalov
2  Rukavishnikov
3  Yeliseyev
Landing
1  Shatalov
2  Rukavishnikov
3  Yeliseyev

Animations: Soyuz

(requires Macromedia Flash Player)
with friendly permission of www.marscenter.it

1st Double Crew

No.   Surname Given names Position
1  Leonov  Aleksei Arkhipovich  Commander
2  Kubasov  Valeri Nikolayevich  Flight Engineer
3  Kolodin  Pyotr Ivanovich  Test Engineer

2nd Double Crew

No.   Surname Given names Position
1  Dobrovolsky  Georgi Timofeyevich  Commander
2  Volkov  Vladislav Nikolayevich  Flight Engineer
3  Patsayev  Viktor Ivanovich  Test Engineer


hi res version (1,08 MB)



Flight

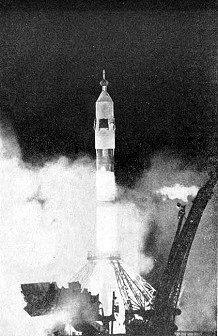

Launch from the Baikonur Cosmodrome; landing 120 km northwest of Karaganda.

The first manned space station was launched on April 19, 1971. Salyut 1 included a number of military experiments, including the OD-4 optical visual ranger, the Orion ultraviolet instrument for characterizing rocket plumes, and the highly classified Svinets radiometer. Primary objectives included photography of the earth, spectrographs of the earth's horizon, experiments with intense gamma rays, and studying manual methods for station orientation.

Soyuz 10 approached to 180 m from Salyut 1 automatically. It was hand docked after failure of the automatic system, but hard docking could not be achieved because of the angle of approach. Flight analysis indicated that the cosmonauts had no instrument to provide the angle and range rate data necessary for a successful manual docking. Soyuz 10 was connected to the station for 5 hours and 30 minutes. Despite the lack of hard dock, it is said that the crew were unable to enter the station due to a faulty hatch on their own spacecraft.
When Vladimir Shatalov tried to undock from the Salyut, the jammed hatch impeded the docking mechanism, preventing undocking. After several attempts he was able to undock and land.

Only a night landing on Soviet territory was possible, which meant the spacecraft could not be oriented for retrofire. The landing commission started planning for an emergency landing in South America, Africa, or Australia. But Vladimir Shatalov reported the gyroscopes and orientation sensors were functioning well. He proposed that he orient on the dayside, spin up the gyro platform, and let the gyros orient the spacecraft on the night side for retrofire. The plan was followed and the spacecraft was targeted for a landing area 80-100 km southwest of Karaganda.
So it was the first night landing in the history of human spaceflights.

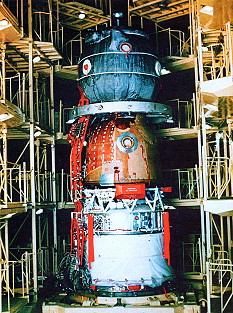

The Soyuz spacecraft is composed of three elements attached end-to-end - the Orbital Module, the Descent Module and the Instrumentation/Propulsion Module. The crew occupied the central element, the Descent Module. The other two modules are jettisoned prior to re-entry. They burn up in the atmosphere, so only the Descent Module returned to Earth.
Having shed two-thirds of its mass, the Soyuz reached Entry Interface - a point 400,000 feet above the Earth, where friction due to the thickening atmosphere began to heat its outer surfaces. With only 23 minutes left before it lands on the grassy plains of central Asia, attention in the module turned to slowing its rate of descent.
Eight minutes later, the spacecraft was streaking through the sky at a rate of 755 feet per second. Before it touched down, its speed slowed to only 5 feet per second, and it lands at an even lower speed than that. Several onboard features ensure that the vehicle and crew land safely and in relative comfort.
Four parachutes, deployed 15 minutes before landing, dramatically slowed the vehicle's rate of descent. Two pilot parachutes were the first to be released, and a drogue chute attached to the second one followed immediately after. The drogue, measuring 24 square meters (258 square feet) in area, slowed the rate of descent from 755 feet per second to 262 feet per second.
The main parachute was the last to emerge. It is the largest chute, with a surface area of 10,764 square feet. Its harnesses shifted the vehicle's attitude to a 30-degree angle relative to the ground, dissipating heat, and then shifted it again to a straight vertical descent prior to landing.
The main chute slowed the Soyuz to a descent rate of only 24 feet per second, which is still too fast for a comfortable landing. One second before touchdown, two sets of three small engines on the bottom of the vehicle fired, slowing the vehicle to soften the landing.

During the landing, the Soyuz air supply became toxic, and Nikolai Rukavishnikov (much like the case of Vance Brand during the Apollo ASTP return) was overcome and became unconscious.
